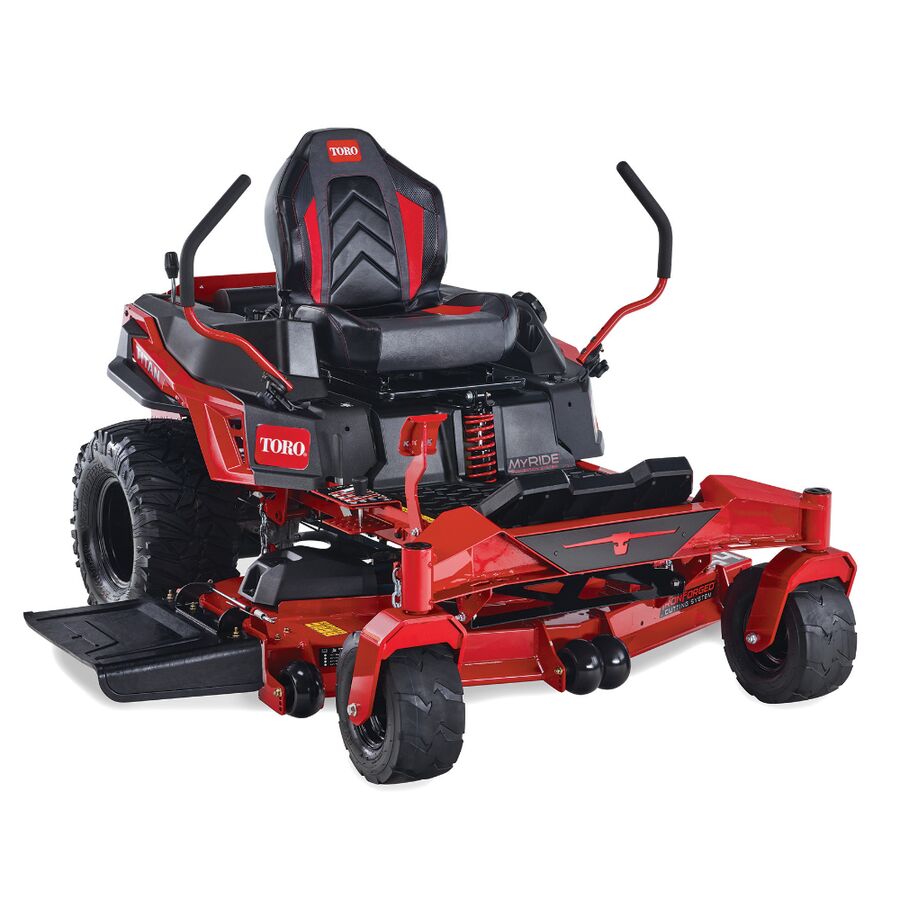

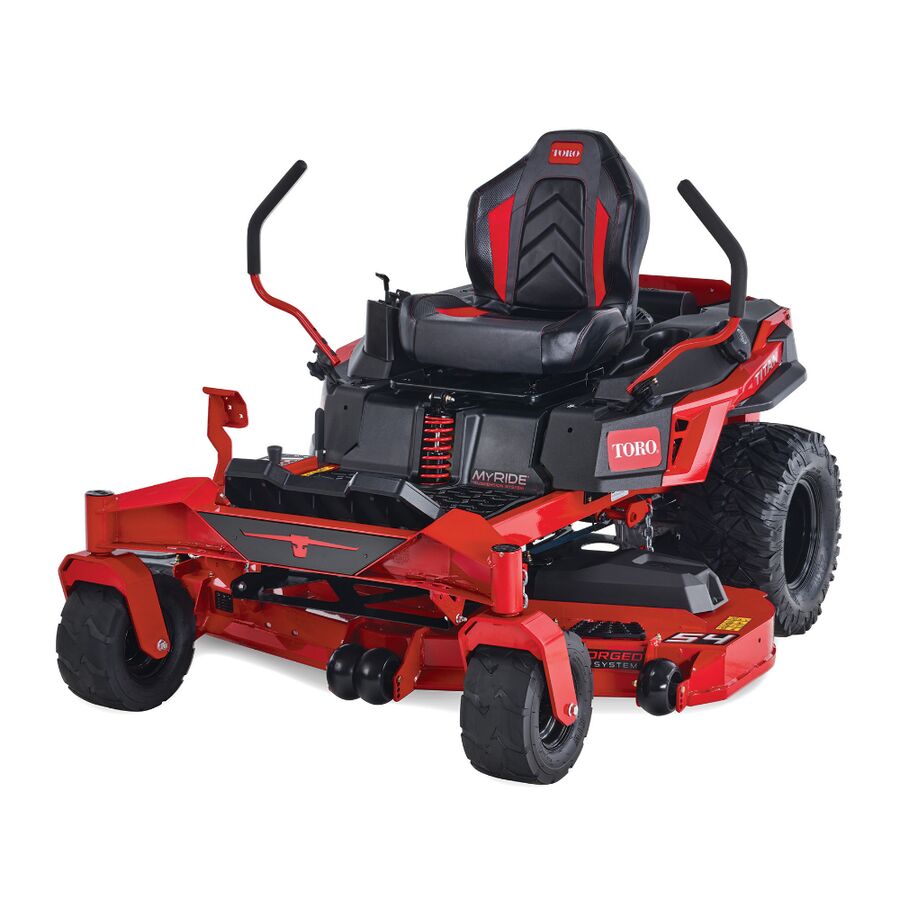

Toro 76511 TITAN Z-Turn Mower w/ MYRIDE 26hp Kohler 747cc V-Twin w/54″ Fabricated Deck

Toro 76511 TITAN Z-Turn Mower w/ MYRIDE 26hp Kohler 747cc V-Twin w/54″ Fabricated Deck

• Built with a commercial-style I-beam front end for extreme durability and strength.
• Patented MyRIDE^® Suspension sits isolated from the frame to save your back and accelerate your mow.
• Its heavy duty steel IronForged^® Deck doesn’t flinch no matter what you throw its way.
• Massive 22″ rear tires feature aggressive treads meant to bring Mother Nature to her knees.
• Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
• The gaming-style seat gives you big time support exactly where you need it.
• The rubber discharge chute flexes without busting up your landscaping or your ride.
• Its gigantic engine delivers mega power so you can absolutely dominate nature’s worst.
• A cast aluminum stomp pad helps you scrape your boots, get your grip, step up and let ‘er rip.
• The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.

Specifications

Air Filter	Kohler Pro Cleaner Air Filter
Anti Scalp Wheels	4 Standard
Armrests	Optional
Blade Design	0.164 in. / 0.417 cm Steel with Blade Stiffner
Blade Tip Speed	18,908 ft/min / 5,763 m/min
Box Dimensions	82.0 in. x 63.0 in. x 52.0 in. / 208.3 cm x 160.0 cm x 132.0 cm
CARB Compliant	Not CARB Compliant
Carrier Frame	3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires	13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic
Clutch	Electromagnetic
Comfort Platform	MyRIDE® Suspension System
Cooling System	Air Cooled
Crankshaft	1″ (25 mm) w/Steel Protector
Cup Holder	Standard
Deck Design	10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper
Deck Material	10 Gauge Steel
Deck Size	54 in / 137 cm
Discharge Chute	Rubber
Drive System	Hydrostatic
Drive Tires	22 in. x 11 in. (55.8 cm x 27.9 cm)
Drive Type	Rear-Wheel Drive
Engine	Kohler KT745 26 hp 747cc
Engine Brand	Kohler
Engine Displacement (cc)	747 cc
Engine Horsepower	26.0 hp
Engine Power (kW)	19.3 kW
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 8.5 mph / 13.6 kph
Forward Mowing Speed	Up to 8.5 mph / 13.6 kph
Front Bumper	Reinforced Bull-Nose
Fuel Capacity	5 gal. / 18.9 L / 20 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 – 5.0 in. / 3.8 – 12.7 cm
Hitch Bracket	Standard
Number of Blades	3
Product Type	TITAN MyRide
Product Use	Residential
Recommended Oil Type	10W-30
Roll-Over Protection System (ROPS)	Optional
Seat	20″ Gaming Style
Spindle Housing	Cast-Aluminum
Start Type	Electric
Steering Controls	Twin Lever
Steering Dampeners	Standard Dampers
Terrain Type	Flat with Obstacles
Tires	13 in. x 6.5 in. (33 x 16.5 cm) Front, 22 in. x 11 in. (55.8 cm x 27.9 cm) Rear
Transmission	Dual hydrostatic HG ZT2800
Weight	789 lbs / 357.9 kg

Disclaimer

*26 HP gross (747 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features. Accessory List (Not Included)

Model/Part #	Description
136-7489	Recycler Mulch Kit
79348	Powered Bagger
